项目(Item) | 说明(Specifications) |
步距角(Step Angle) | 1.2° |
步距角精度(Step Angle Accuracy) | ±5% (整步无负载,full step, no load) |
径向间隙( Radial Play) | 0.02mm@450 g |
轴向间隙( Axial Play) | 0.08mm@450 g |
最大径向负载(Max. radial force) | 75N 距法兰20mm (20mm from the flange) |
最大轴向负载(Max. axial force) | 15N |
介电强度(Dielectric Strength) | 600VAC / 1s |
绝缘电阻(Insulation Resistance) | 100MΩ ,500VDC |
环境温度(Ambient Temperature) | -20。C~+50。C |
绝缘等级(Insulation Class) | Class B |

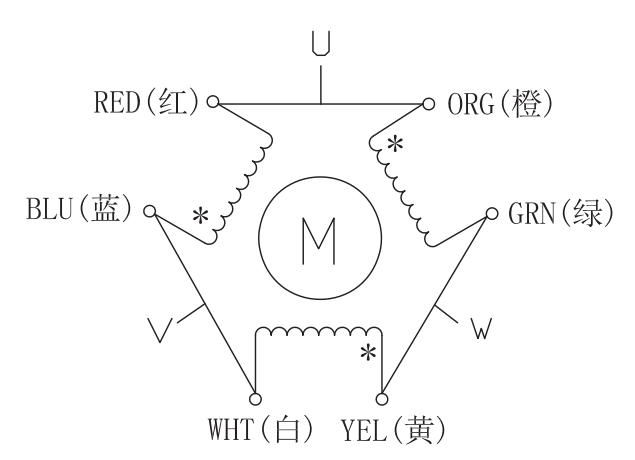

型号(Model No.) | Current /Phase 每相 电流 | Resistance /Phase 每相 电阻 | Inductance /Phase 每相 电感 | Holding Torque 保持 转矩 | Detent Torque 定位 转矩 | # of Leads 引出线数 | Rotor Inertia 转动惯量 | Weight 重量 | Length 机身 长度 |
Single shaft (单出轴) | A | Ω | mH | N.m | N.m | # | g-cm2 | kg | mm |

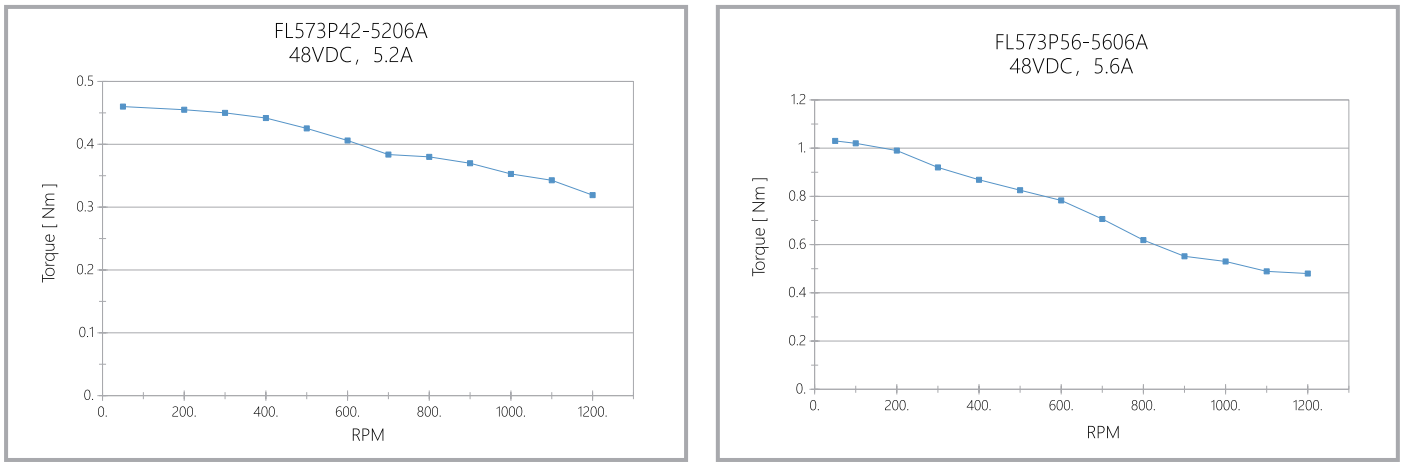

FL573P42-5206A | 5.2 | 1.3 | 1.4 | 0.45 | 0.021 | 6 | 110 | 0.45 | 42±1 |
FL573P56-5606A | 5.6 | 0.7 | 1.7 | 0.90 | 0.040 | 6 | 300 | 0.75 | 56±1 |

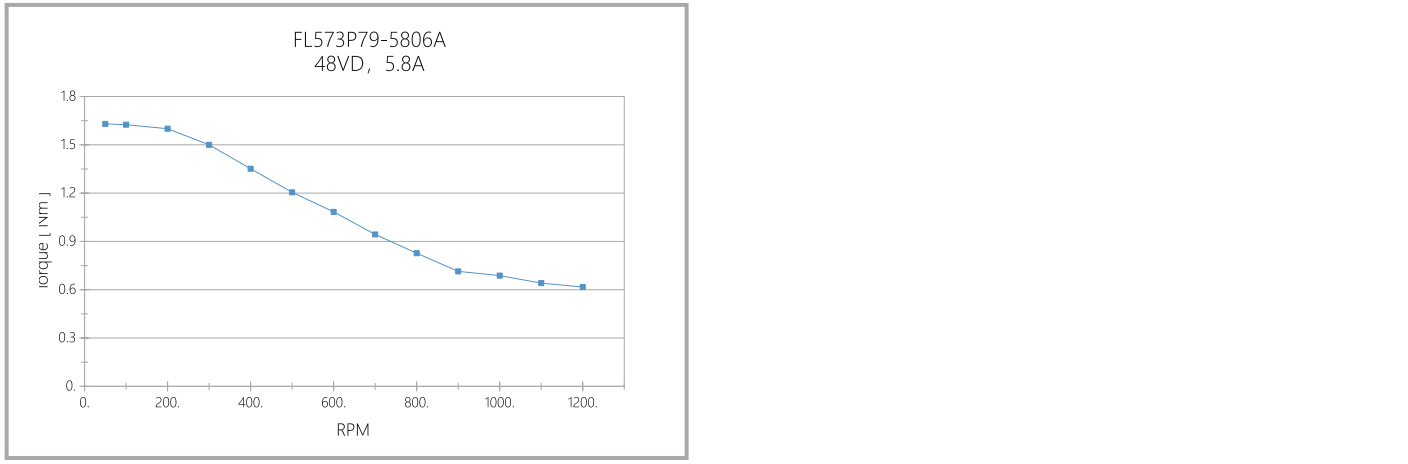

FL573P79-5806A | 5.8 | 1.05 | 2.4 | 1.50 | 0.068 | 6 | 480 | 1.10 | 79±1 |
该款电机可以根据客户需求定制。
The motor can be designed &manufactured with customized request.

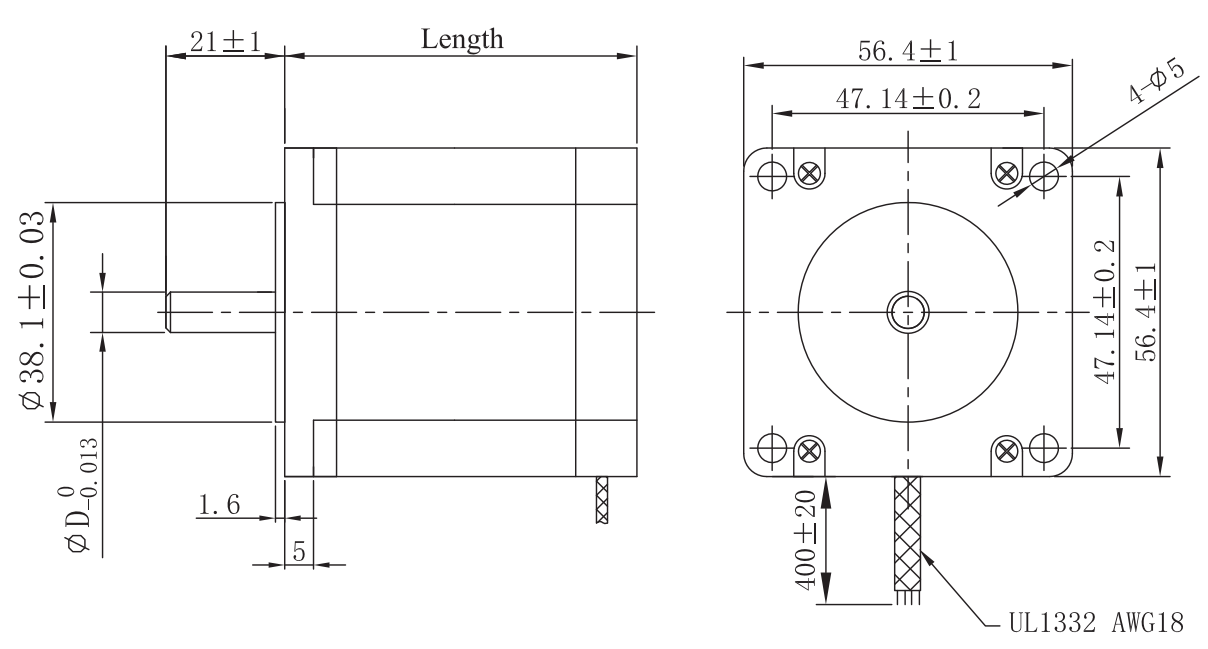

FL573P42-5206A & FL573P56-5606A, “D”是6.35mm,FL573P79-5806A, “D”是8mm
