FL36RBL-36JXE30K
产品中心 行星减速箱

FL36RBL-36JXE30K

36mm标准无刷电机配36mm行星减速箱
选件:
  • FL36RBL-36JXE30K

    编码器

  • FL36RBL-36JXE30K

    齿轮箱

  • FL36RBL-36JXE30K

    接插件

  • FL36RBL-36JXE30K

    刹车

无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)


型号范围

36RBL/36JXE30K

Φ36行星减速器,允许转矩范围:0.3N.m~3.0N.m

36mm OD Planetary Gearbox, Permissible Load Range: 0.3N.m~3.0N.m


接线方式   Wire Diagram

UVWVccHaHbHcGND
黄Yellow红Red黑Black红Red蓝Blue绿Green白 White黑 Black
UL1061   AWG20/24UL1061   AWG26


无刷电动机主要技术参数  Brushless Motor Technical Data


电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电阻电感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL36RBLS40-24V-4818A43247000480036181083.72.42.1
FL36RBLS57-24V-4524A43245800450050241504.122



无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL36RBLS40-24V-4818A无刷直流电机(长度LD=40)  FL36RBLS40-24V-4818A  DC Brushless Motor (LD=40)

减 速 比   Reduction ratio3.75.214192735517196115139181219
减速级数 Number of gear trains1122223333344
减速器长度(L)  Length(L)mm313140.140.140.140.1494949494957.957.9
空载转速   No-load speedr/min18871351500368259200137997361503932
额定转速   Rated speedr/min129492734325317813794685042352722
额定转矩   Rated torqueN.m0.120.170.410.550.7911.31.92.53333
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.57.599


配置FL36RBLS57-24V-4524A无刷直流电机(长度LD=57)  FL36RBLS57-24V-4524A  DC Brushless Motor (LD=57)

减 速 比   Reduction ratio3.75.214192735517196115139181219
减速级数 Number of gear trains1122223333344
减速器长度(L)  Length(L)mm313140.140.140.140.1494949494957.957.9
空载转速   No-load speedr/min15631120414305215166114826050423227
额定转速   Rated speedr/min121386932123716712988634739322521
额定转矩   Rated torqueN.m0.170.230.570.771.11.41.92.633333
最大瞬间允许负载Max. permissible load in a short timeN.m113.53.53.53.57.57.57.57.57.599

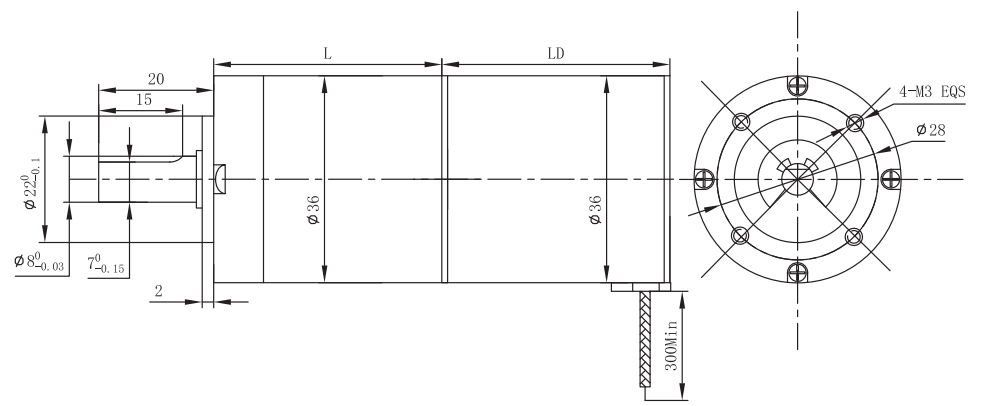

电机尺寸
