57STH-60JB
产品中心 减速电机

57STH-60JB

1.8° 57mm, Nema 23 正齿轮箱步进电机
选件:
  • 57STH-60JB

    编码器

  • 57STH-60JB

    齿轮箱

  • 57STH-60JB

    接插件

  • 57STH-60JB

    刹车

特性概要(General specification)

Ratio

减速比

3

7.5

12.5

15

25

30

50

75

90

100

120

150

Weight(重量)

0.24kg

0.3kg


Number of gear trains

减速级数



2



3



4


Nominal torque

额定转矩



10N.m


Ultimate torque

极限转矩



15N.m


Efficiency

效率

81%

73%

66%


Backlash

回差

4 deg

3.5deg

2.5deg




齿轮箱电机性能(Gear Motor Specifications)

Ratio

减速比

3

7.5

12.5

15

25

30

50

75

90

100

120

150



FL57STH41-60JB

Torque(N.m) (at 300rpm)

转矩(N.m) (在 300rpm)

1.02

2.55

4.25

5.1

7.66

9.19

---

---

---

---

---

---

speed(rpm)转速(rpm)

100

40

24

20

12

10

---

---

---

---

---

---



FL57STH51-60JB

Torque(N.m) (at 300rpm)

转矩(N.m) (在 300rpm)

1.78

4.25

7.08

8.5

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

100

40

24

20

---

---

---

---

---

---

---

---



FL57STH56-60JB

Torque(N.m) (at 300rpm)

转矩(N.m) (在 300rpm)

1.84

4.61

7.69

9.23

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

100

40

24

20

---

---

---

---

---

---

---

---



FL57STH76-60JB

Torque(N.m) (at 300rpm)

转矩(N.m) (在 300rpm)

2.91

7.29

---

---

---

---

---

---

---

---

---

---

speed(rpm)转速(rpm)

100

40

---

---

---

---

---

---

---

---

---

---


RATIO

减速比

L2(mm)

L1(mm)

FL57STH41-60JB

FL57STH51-60JB

FL57STH56-60JB

FL57STH76-60JB

3---15

40

50

55

75

32

25---150

40



该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

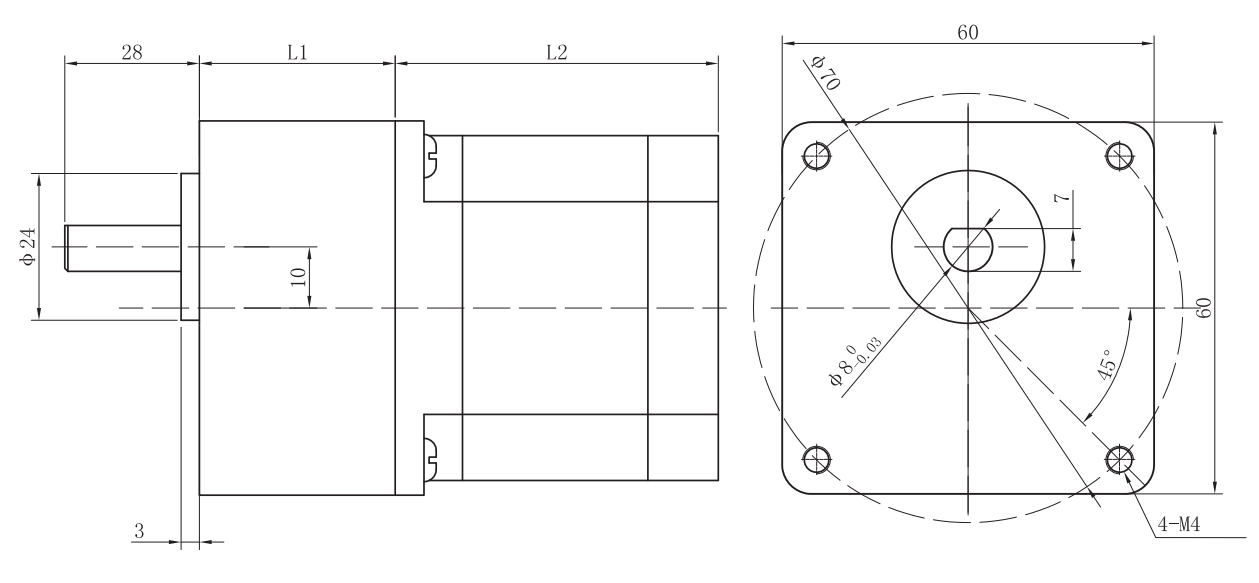

电机尺寸

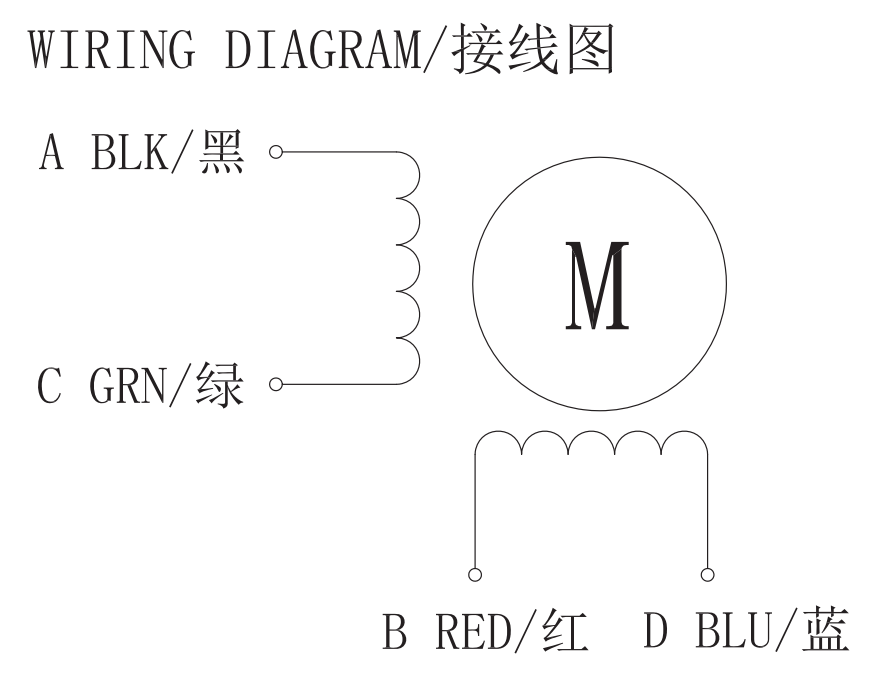

接线图(Wiring Diagram)




资料下载
