FL32BLW18-32JM30K

32mm外转子无刷电机配32mm行星减速箱
选件:
  • FL32BLW18-32JM30K

    编码器

  • FL32BLW18-32JM30K

    齿轮箱

  • FL32BLW18-32JM30K

    接插件

  • FL32BLW18-32JM30K

    刹车

外转子无刷直流行星齿轮减速电机(内齿圈材质:金属)

BLDC Planetary Gear Moto (Ring Gear Material: Metal)

型号范围
FL32BLW18/32JM50K

Φ32减速器,允许转矩范围:0.5N.m~5.0N.m

32mm OD Planetary Gearbox, Permissible Load Range: 0.5N.m~5.0N.m


接线方式   Wire Diagram


接插件Connector插针号Pin功 能Functions说明Description
FPC1V ccHall电源输入:+5VDC ~ +24VDC
2Hall W
3Hall U
4Hall V
5GNDHall 接地
6Phase W
7Phase V
8Phase U



无刷电动机主要技术参数  Brushless Motor Technical Data

电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流线电阻线电感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL32BLW18-9V-3706A8393700210029.5673.83.42.871.61
FL32BLW18-12V-4607A83124600280025.1775.33.23.431.87
FL32BLW18-24V-4507A83244500276025.5776.51.713.77.73
FL32BLW18-48V-4808A83484800295024.7874.10.975327.8


无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL32BLW18无刷直流电机   FL32BLW18 BLDC Motor


减 速 比   Reduction ratio3.75.2141927354959688295115181218253
9V额定转速 Rated speed  r/min5664051501117860433631262218129.68.3

额定转矩 Rated torque  N.m0.0990.140.330.450.650.841.11.31.51.822.53.54.24.9
12V额定转速 Rated speed  r/min75554120014710480574741342924151311

额定转矩 Rated torque  N.m0.0840.120.280.390.550.710.91.11.21.51.72.133.64.1
24V额定转速 Rated speed  r/min74453319714510279564741342924151311

额定转矩 Rated torque  N.m0.0850.120.290.390.560.720.911.11.31.51.82.133.64.2
48V额定转速 Rated speed  r/min79556921115510984605043363126161412

额定转矩 Rated torque  N.m0.0820.120.280.380.540.70.881.11.21.51.72.12.93.54.1
减速级数 Number of gear trains1234
减速器长度(L)  Length(L)  mm25.732.839.746.6
最大瞬间允许负载N.mMax. permissible load in a short time1.561012

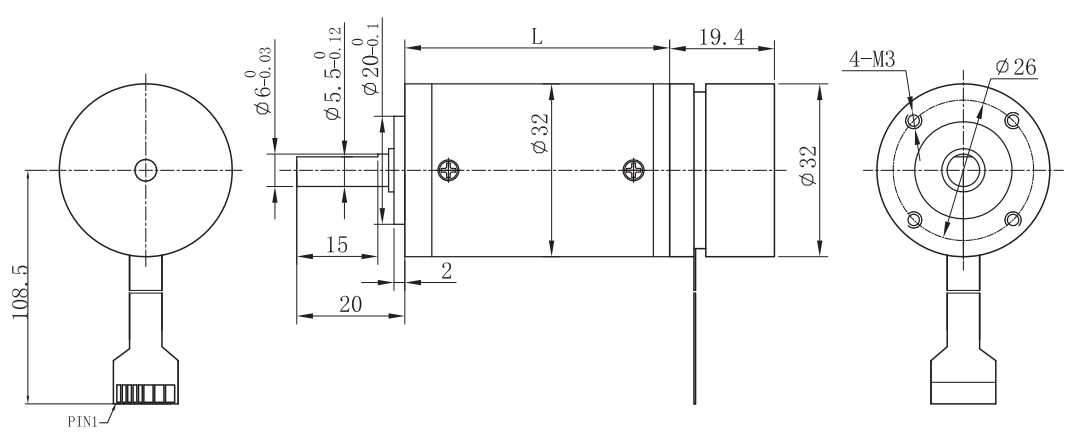

电机尺寸
